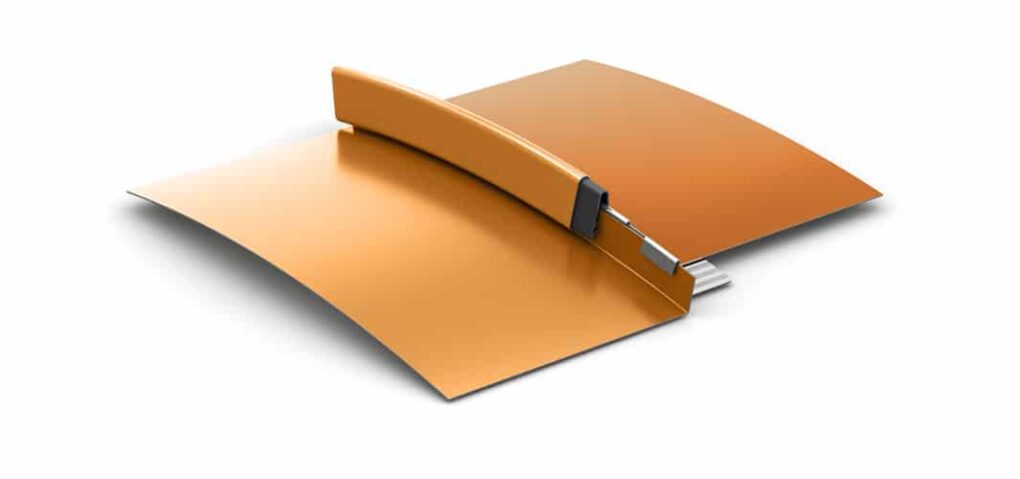

Curved or Tapered Tee-Panel

Materials

• 24 Gauge Steel
• Limited Availability: 22 Gauge Steel, 0.032 Aluminum

‍

Specifications

• Uses: Roof, Fascia*
• Coverage: 12 3/4"
• Finishes: Smooth
• Fasteners: Concealed
• Applications: Solid sheathing
• Seam: 1" snap-on with extruded vinyl weatherseal

‍

Installation

• For Roofing applications only
• Tee-Panels and snap-on seams can be curved in continuous length panels on site using the Berridge SS-14 Roll Former
• Convex at a minimum of 4’
• Concave at a minimum of 6’
• Straight or curved Tee-Panels can be formed on site with the Berridge SL-14 Roll Former
• Compound Curved Tee-Panels are formed on site with the Berridge SL-1 Roll Former. The SL-1 does not curve panels. Panels must be hand curved over solid decking
• Snap-on seams are curved using the SS-14 Roll Former or the SC (Seam Curver) Roll Former
• Extra snap-on seam caps are factory formed to a maximum of 40’
• Use Seam Sleeve for splicing Tee-Panel snap-on seams
• Entire roof area shall be covered with Berridge approved underlayment
• Use 1” Folding Tee-Clip typically at 24” O.C. with Tee-Panel
• Use 1” Stainless Folding Tee-Clip typically at 12” O.C. with Aluminum panels

‍
